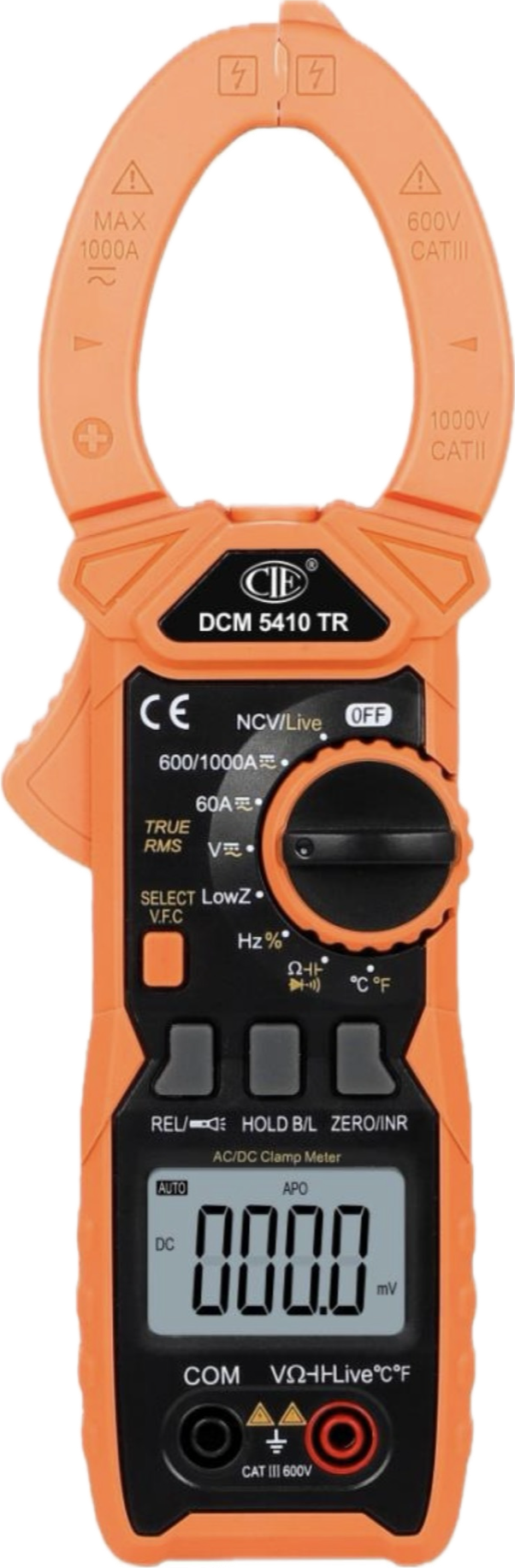

DCM 5410 TR Digital Clamp Multimeter — True-RMS AC/DC, 1000 A
True-RMS AC/DC clamp multimeter — 1000 A AC and DC, plus capacitance, frequency, and temperature. CAT III 600 V.
CIE® Guarantee
- CIE® Registered Trade Mark
- Calibrated Before Despatch
- 12-Month Warranty
- Made in India
- Custom Ranges Available
About This Instrument
The DCM 5410 TR is a True-RMS digital clamp multimeter measuring both AC and DC current up to 1000 A, along with AC/DC voltage, resistance, capacitance, frequency (10 Hz–10 MHz), and temperature (−20°C to 1000°C). The DC current clamp capability is the key differentiator from the AC-only DCM 2250 TR, making the DCM 5410 TR suitable for solar, battery, and DC distribution work. Features: 6000-count auto-ranging display, NCV and live-wire test, Low-Z ACV mode, data hold, MIN/MAX, backlight, torch, and auto power-off. 40 mm jaw opening. Safety rated CAT III 600 V. Powered by 2 × AAA batteries. Weight: approx. 315 g.
Technical Specifications
| Specification | Value |
|---|---|
| AC Current Ranges (True-RMS) | 60 A / 600 A / 1000 A |
| DC Current Ranges | 60 A / 600 A / 1000 A |
| DC Voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V |
| AC Voltage (True-RMS) | 6 V / 60 V / 600 V / 750 V |
| Capacitance | 1 nF to 10 mF (8 ranges) |
| Frequency | 10 Hz – 10 MHz |
| Temperature | −20°C to 1000°C / −4°F to 1832°F |
| Low Impedance ACV | 6 V / 60 V / 300 V — input impedance ≤3 KΩ |
| Resistance | 600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 20 MΩ / 60 MΩ |
| Display | 6000 Counts LCD, auto-ranging |
| NCV / Live Wire Test | Provided |
| Jaw Opening (Max.) | 40 mm |
| Safety Category | CAT III 600 V |
| Power Supply | 2 × AAA 1.5 V Batteries |
| Dimensions (L×W×H) | 230 × 75 × 40 mm |
| Weight (incl. battery) | Approx. 315 g |
| Warranty | 12 months against manufacturing defects |
What's Included
- Test Leads
- Carrying Pouch
- User Manual
- 2 × AAA Batteries
Key Applications
- AC and DC current measurement on panels and distribution boards
- Solar and battery system diagnostics (DC current clamp)
- Electrical maintenance, switchgear, and panel testing
- Combined electrical and temperature diagnostics
12-Month Warranty · Direct After-Sales Support
Every CIE® instrument carries a 12-month warranty against manufacturing defects. After-sales support is handled directly by CIE — not a distributor network. Non-standard ranges or custom specifications can be manufactured to your requirement.
