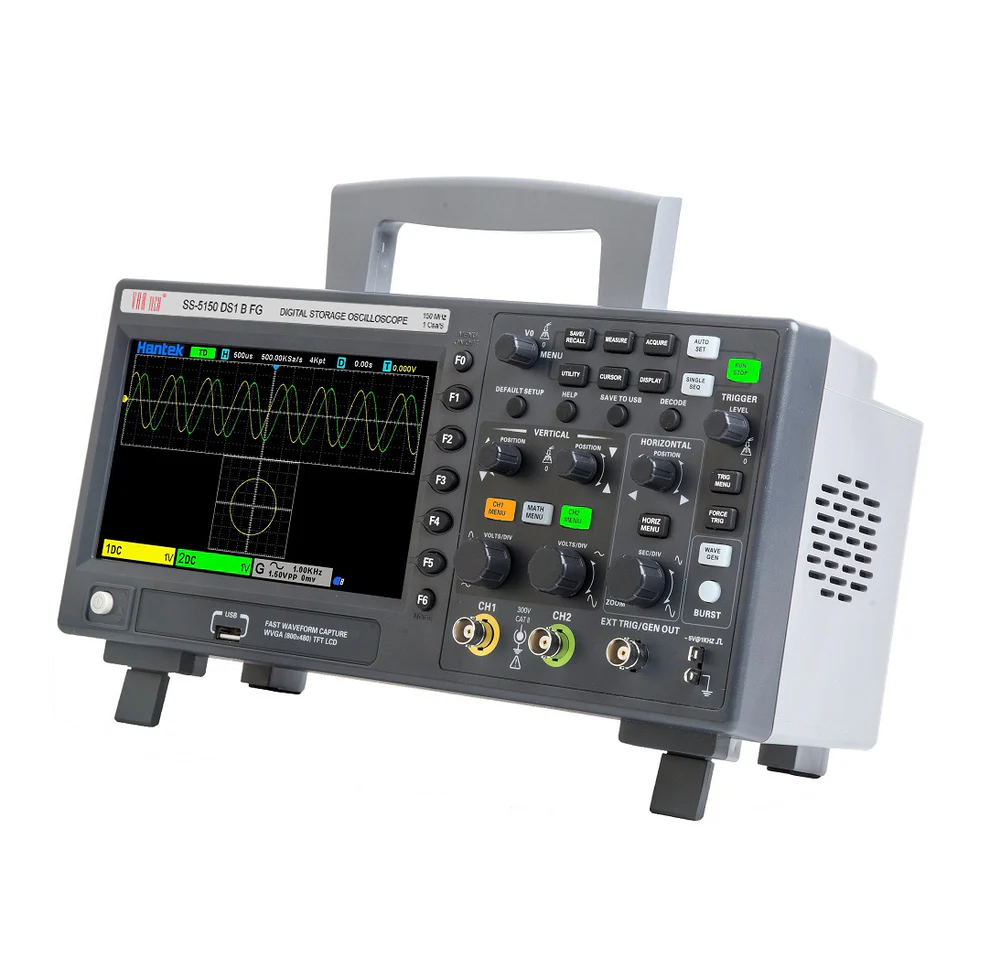

SS-5150DS1B FG 150 MHz DSO with Built-in 25 MHz Arbitrary Waveform Generator
Top-of-range 150 MHz DSO plus an integrated 25 MHz AWG — signal source and analyser in one bench instrument.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument
The Vartech SS-5150DS1B FG is a 150 MHz dual-channel digital storage oscilloscope with a built-in 25 MHz arbitrary waveform generator (AWG). The AWG outputs sine, square, ramp, exponential, noise, DC and arbitrary waveforms from 1 µHz to 25 MHz at up to 3.5 Vpp into 50 Ω. The 1 GS/s DSO shares all specifications with the SS-5100DS1B — 4M record length, 7-inch TFT, USB, FFT, 32 auto-measurements and cursor measurements. An ideal instrument for stimulus-response testing, filter characterisation, amplifier frequency response and general circuit verification.
Key Features
- 150 MHz bandwidth (−3 dB); rise time ≤3.5 nS
- Built-in AWG: 1 channel, Sine/Square/Ramp/Exponential/Noise/DC/Arbitrary — 1 µHz to 25 MHz
- AWG output: up to 3.5 Vpp (into 50 Ω)
- Dual channel with 1 GS/s real-time sampling
- 2 mV/div to 10 V/div vertical deflection
- 4M record length per channel (8M total)
- 7-inch 800×480 TFT LCD, USB host & device
Technical Specifications
| Bandwidth | DC ~ 150 MHz (−3 dB); Rise time ≤3.5 nS |
| Channels | 2 (Dual Channel) |
| Real-Time Sampling Rate | 1 GS/s |
| Vertical Deflection | 2 mV / div ~ 10 V / div |
| Sweep Time | 100 S ~ 2 nS / div |
| Record Length | 4M max / channel (8M total) |
| Built-in AWG | 1 channel — Sine, Square, Ramp, Exponential, Noise, DC, Arbitrary; frequency: 0.1 Hz ~ 25 MHz (Sine); output: 5 mV ~ 3.5 Vpp (into 50 Ω) |
| Display | 7" TFT LCD, 800×480 resolution |
| Measurements | 32 types of auto-measurement; cursor measurements (ΔV, ΔT, 1/ΔT) |
| Math & Analysis | FFT, Maths |
| Interface | USB Host & USB Device |
| Other Features | Auto Setup; waveform & setup storage |
| Power Supply | AC 100 ~ 240 V, 50 / 60 Hz |
| Accessories | User's manual, mains cord; ratio probes optional |
| Dimensions & Weight | 318 × 110 × 150 mm | Approx. 2 Kg |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
