SGDA-30M 30 MHz Dual Channel DDS Function Generator
30 MHz DDS with 266 MSa/s, 2.4-inch TFT, 60 arbitrary waveforms and built-in 100 MHz frequency counter.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

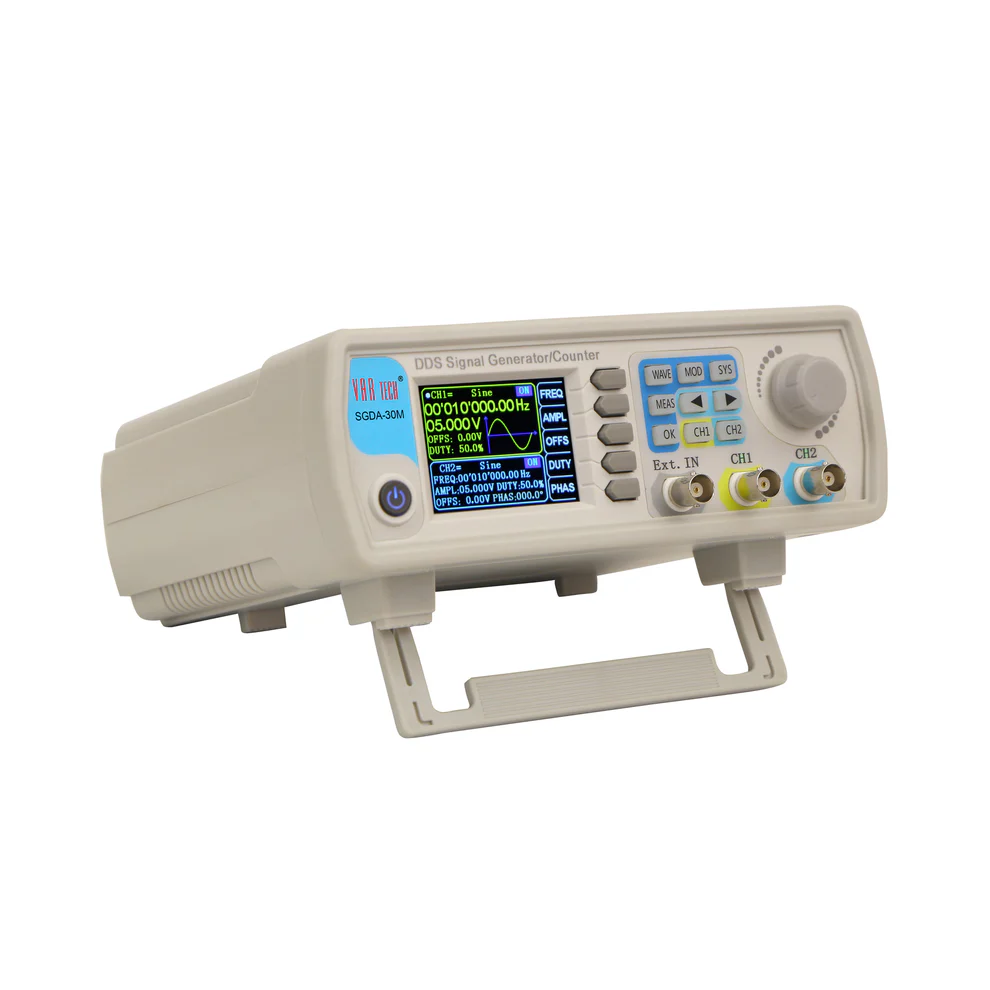

The Vartech SGDA-30M is a dual-channel DDS function generator with 30 MHz sine output (25 MHz square and triangle, 6 MHz pulse/TTL/arbitrary), 266 MSa/s sampling rate and 14-bit resolution. A 2.4-inch TFT colour LCD displays all parameters. Waveforms include sine, square, pulse, triangle, CMOS, DC level, partial/half/full wave, staircase waves, noise, exponential, Lorenz and 60 built-in arbitrary waveforms. DC offset, linear/log sweep, burst and settings store/recall are provided. A multifunction frequency counter covers 1 Hz to 100 MHz. USB and TTL external interface. Power via DC 5V adaptor (220V AC supplied).
Key Features
- 30 MHz sine; 25 MHz square & triangle; 6 MHz pulse, TTL & arbitrary
- Dual independent channels; 266 MSa/s, 14-bit resolution
- 60 built-in arbitrary waveforms
- Frequency counter: 1 Hz ~ 100 MHz
- DC offset, linear/log sweep, burst, store/recall
- 2.4-inch TFT LCD; USB & TTL external interface
Technical Specifications
| Channels | 2 (Dual Channel) |
| Frequency — Sine | 30 MHz (0.01 µHz resolution) |
| Frequency — Square & Triangle | 25 MHz |
| Frequency — Pulse, TTL & Arbitrary | 6 MHz |
| Sampling Rate | 266 MSa/s (14-bit vertical resolution) |
| Amplitude — Sine (≤11 MHz) | 2 mVpp ~ 20 Vpp |
| Amplitude — Sine (≥11 MHz) | 2 mVpp ~ 10 Vpp |
| Amplitude — Square & Triangle (≤10 MHz) | 2 mVpp ~ 20 Vpp |
| Amplitude — Square & Triangle (≥10 MHz) | 2 mVpp ~ 5 Vpp |
| Waveforms | Sine, Square, Pulse, Triangle, CMOS, DC Level, Partial Sine, Half Wave, Full Wave, Positive Staircase, Anti-Ladder, Noise, Exponential Rise/Drop, Multisonic, Symplectic Pulse, Lorenz Pulse + 60 Arbitrary |
| Frequency Counter | 1 Hz ~ 100 MHz |
| Other Functions | DC Offset, Sweep (Lin / Log), Burst, Settings Store/Recall |
| Display | 2.4" TFT LCD |

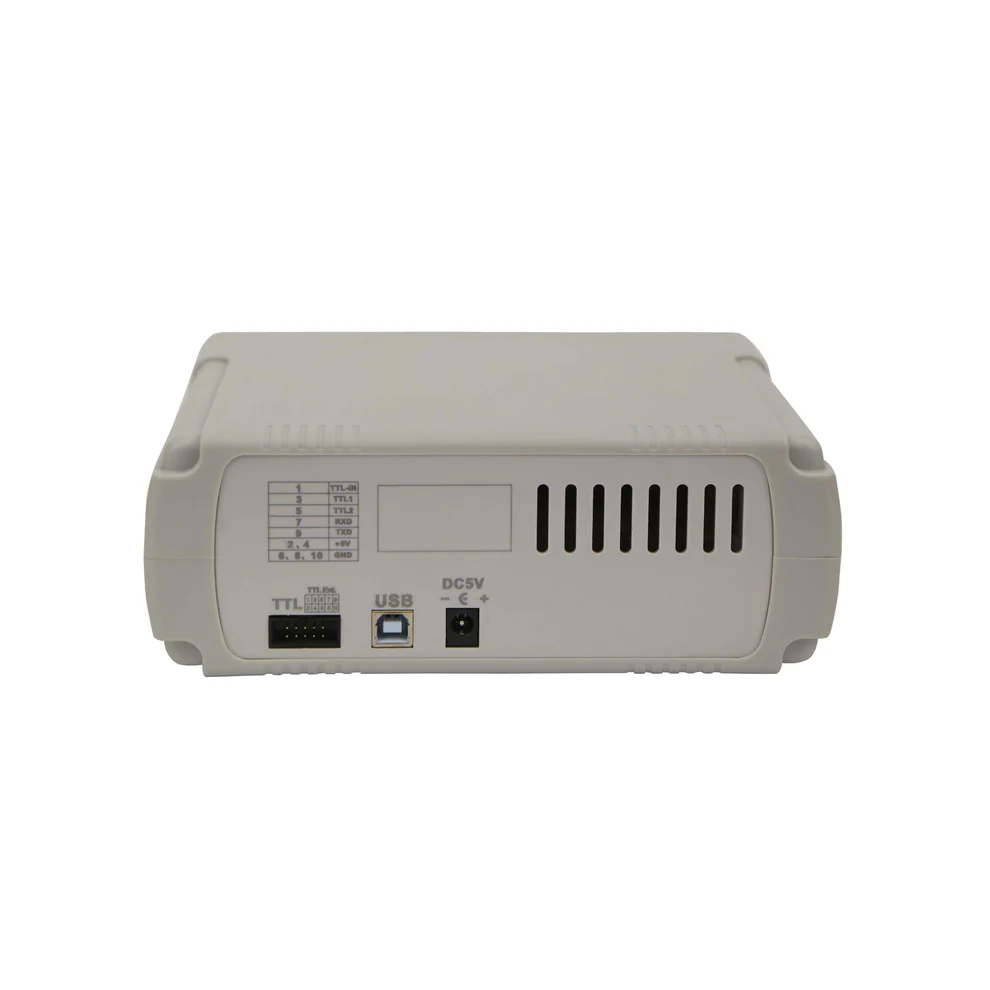

| Interface | USB & TTL External |
| Power Supply | DC 5V ±0.5V via adaptor (adaptor for 220 V AC ±10%, 50 Hz provided) |
| Accessories | Power adaptor, user manual, S/W, USB cable, BNC cables |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
