SGDA-15M 15 MHz Dual Channel DDS Function Generator
15 MHz DDS with 266 MSa/s, 2.4-inch TFT and 60 arbitrary waveforms — same platform as the 30M at a more accessible frequency.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

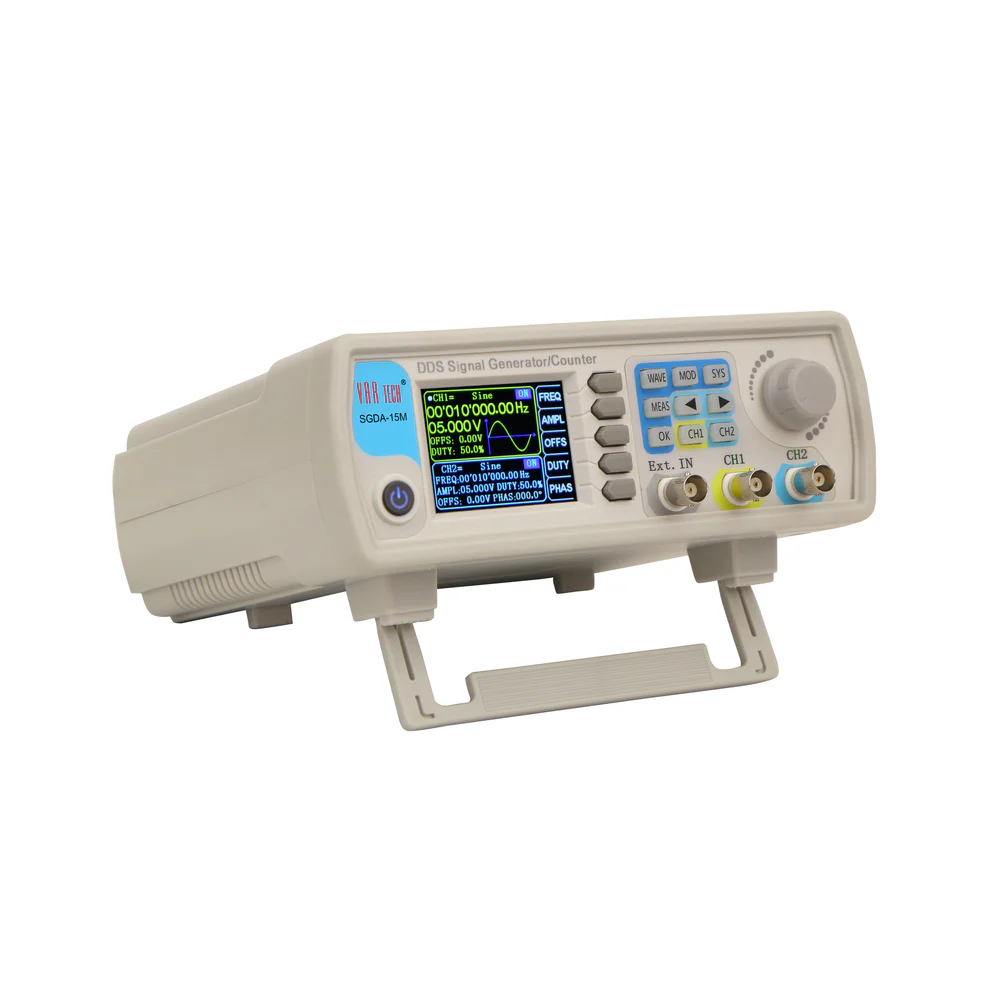

The Vartech SGDA-15M is a dual-channel DDS function generator sharing the proven SGDA-30M platform with 15 MHz sine, square and triangle output (6 MHz pulse/TTL/arbitrary), 266 MSa/s, 14-bit resolution and a 2.4-inch TFT LCD. All waveforms, 60 arbitrary waveforms, the 1 Hz to 100 MHz frequency counter, DC offset, sweep and burst functions are identical to the SGDA-30M.
Key Features
- 15 MHz sine, square & triangle; 6 MHz pulse, TTL & arbitrary
- Dual independent channels; 266 MSa/s, 14-bit resolution
- 60 built-in arbitrary waveforms
- Frequency counter: 1 Hz ~ 100 MHz
- DC offset, linear/log sweep, burst, store/recall
- 2.4-inch TFT LCD; USB & TTL external interface
Technical Specifications
| Channels | 2 (Dual Channel) |
| Frequency — Sine, Square & Triangle | 15 MHz (0.01 µHz resolution) |
| Frequency — Pulse, TTL & Arbitrary | 6 MHz |
| Sampling Rate | 266 MSa/s (14-bit vertical resolution) |
| Amplitude — Sine (≤11 MHz) | 2 mVpp ~ 20 Vpp |
| Amplitude — Sine (≥11 MHz) | 2 mVpp ~ 10 Vpp |
| Amplitude — Square & Triangle (≤10 MHz) | 2 mVpp ~ 20 Vpp |
| Amplitude — Square & Triangle (≥10 MHz) | 2 mVpp ~ 5 Vpp |
| Waveforms | Sine, Square, Pulse, Triangle, CMOS, DC Level, Partial Sine, Half Wave, Full Wave, Positive Staircase, Anti-Ladder, Noise, Exponential Rise/Drop, Multisonic, Symplectic Pulse, Lorenz Pulse + 60 Arbitrary |
| Frequency Counter | 1 Hz ~ 100 MHz |
| Other Functions | DC Offset, Sweep (Lin / Log), Burst, Settings Store/Recall |
| Display | 2.4" TFT LCD |

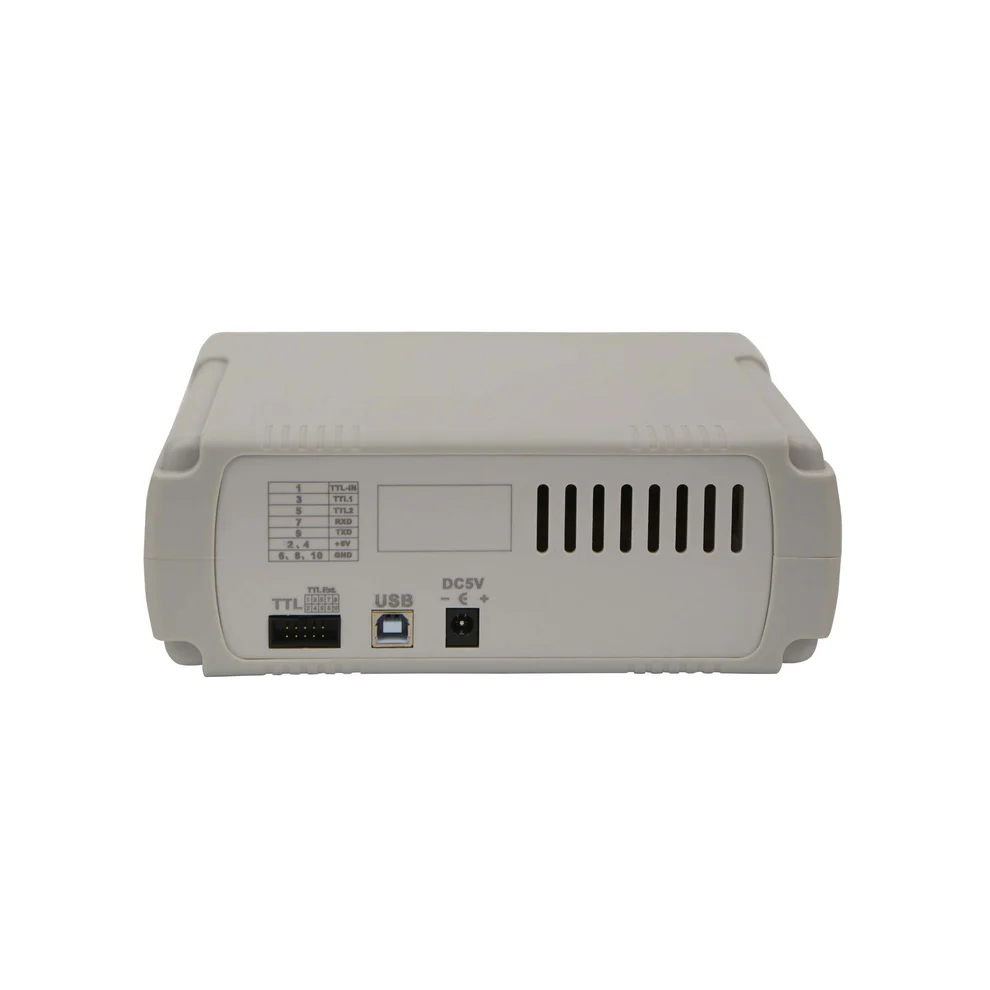

| Interface | USB & TTL External |
| Power Supply | DC 5V ±0.5V via adaptor (adaptor for 220 V AC ±10%, 50 Hz provided) |
| Accessories | Power adaptor, user manual, S/W, USB cable, BNC cables |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
