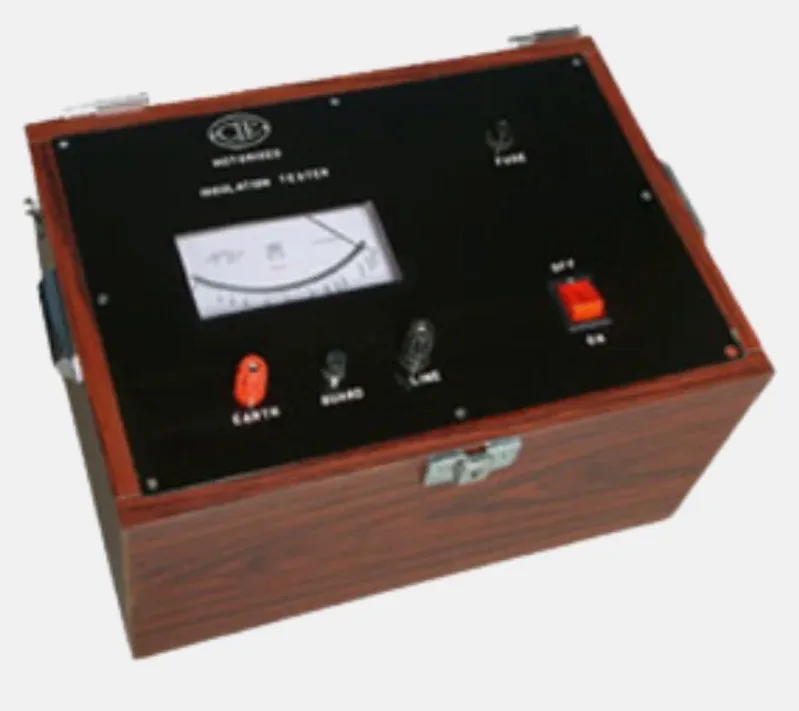

CIE/777 Motorised Insulation Tester
Mains-motor-driven insulation tester for sustained PI and dielectric absorption testing. 500 V to 10,000 V.
CIE® Guarantee
- CIE® Registered Trade Mark
- Calibrated Before Despatch
- 12-Month Warranty
- Made in India
- Custom Ranges Available
About This Instrument
The CIE/777 is a universal, multi-purpose insulation tester for checking insulation and conductance under simulated operating conditions in high-tension electrical and electronic applications. Driven by a mains motor (230 V AC, 50 Hz), the CIE/777 applies test voltage continuously for as long as needed — enabling genuine polarization index (PI) and dielectric absorption testing that hand-cranked instruments cannot sustain. PI is calculated as resistance after 10 minutes ÷ resistance after 1 minute; better results are obtained with longer periods. Housed in a seasoned wooden cabinet with sunmica finish (detachable lid, handle, lock). Guard ring around the line terminal and guard terminal eliminate surface-leakage errors. Externally accessible infinity adjuster provided. Conforms to IS: 2992-1987. Note on HV testing leads: catalogue lists HV leads as an optional, extra-cost accessory; price list states one pair is supplied with every instrument. Confirm with factory before ordering.
Technical Specifications
| Specification | Value |
|---|---|
| Drive | Mains motor, 230 V, 50 Hz A.C. |
| Body | Seasoned wooden cabinet with sunmica finish, detachable lid, handle, lock |
| Scale Length | 100 mm (approx.) |
| Accuracy | As per IS: 2992-1987 |
| Dimensions (incl. top cover, approx.) | 14 × 10 × 10 inch |
| Weight (incl. top cover) | 9 kg (approx.) |
| Response Time | 3 seconds |
| Rated Voltages Available | 500 V / 1000 V / 2500 V / 5000 V / 10000 V |
| Warranty | 12 months against manufacturing defects |
Build to Order
Specify the required rated voltage and resistance range when ordering. Other ranges manufactured to specific requirement.
Voltage & Resistance Range — Ordering Combinations
| Rated Voltage | Resistance Range |
|---|---|
| 500 V | 0–1000 MΩ |
| 1000 V | 0–2000 MΩ |
| 2500 V | 0–5000 MΩ |
| 2500 V | 0–10000 MΩ |
| 2500 V | 0–20000 MΩ |
| 5000 V | 0–5000 MΩ |
| 5000 V | 0–10000 MΩ |
| 5000 V | 0–20000 MΩ |
| 5000 V | 50–50000 MΩ |
| 5000 V | 100–100000 MΩ |
| 10000 V | 0–10000 MΩ |
| 10000 V | 0–20000 MΩ |
| 10000 V | 50–50000 MΩ |
| 10000 V | 100–100000 MΩ |
Specify the required rated voltage and resistance range when ordering. Other ranges manufactured to specific requirement.
Additional Options
- Rexine carrying case — at extra cost
- 15-minute timer facility — at extra cost
- H.V. testing leads, 2m (general or special) — at extra cost per catalogue; see note above
- Dual voltage & dual insulation range option — at extra cost
- Single voltage, dual insulation range option — at extra cost
- Timer (+₹3,800) — at extra cost per price list
- Any other range — on request
What's Included
- Mains cord, 2 metres
- One pair of H.V. testing leads (per price list — note conflict with catalogue; confirm with factory)
Key Applications
- Sustained insulation and polarization index (PI) testing on large rotating plant
- Power transformer insulation assessment including dielectric absorption ratio
- HV cable and switchgear insulation testing
- Substation commissioning by EPC contractors
12-Month Warranty · Direct After-Sales Support
Every CIE® instrument carries a 12-month warranty against manufacturing defects. After-sales support is handled directly by CIE — not a distributor network. Non-standard ranges or custom specifications can be manufactured to your requirement.
